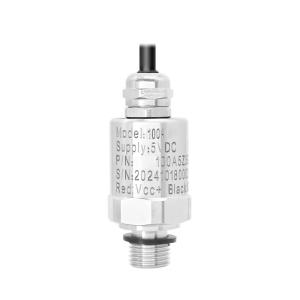

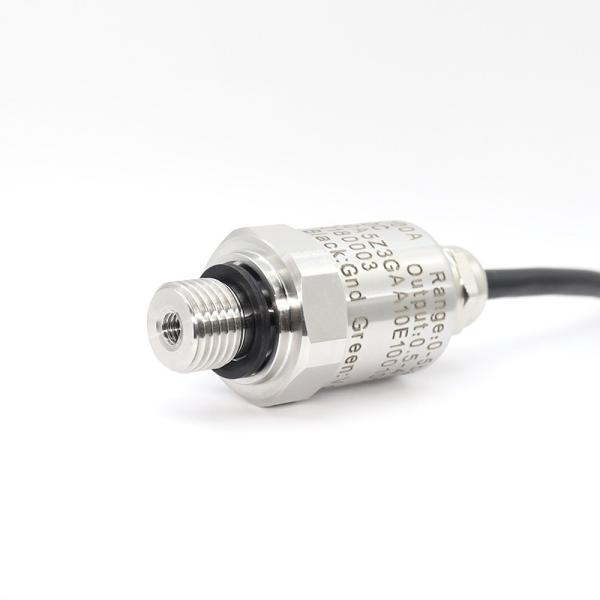

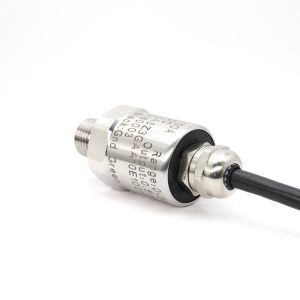

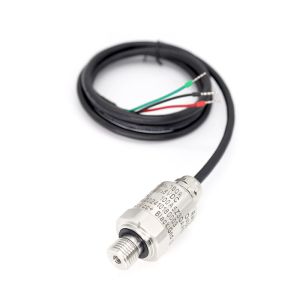

Exceptional Overload Resistance Ceramic Pressure Sensor for Compressed Air Systems Multiple Outputs

Key Features

• Wide Temperature Range: Operates effectively from -35℃ to 105℃.
• Compact Design: Engineered for cost-effectiveness and space efficiency.
• Advanced Compensation Technology: Incorporates algorithm compensation and correction for enhanced accuracy.
• Exceptional Overload Resistance: Capable of handling 150% of full-scale overload.
• High Impact Resistance: Designed to withstand harsh conditions.
• Multiple Output Options: Versatile signal outputs for various applications.
• Customizable Specifications: Tailored solutions to meet specific needs.

Applications

• Industrial Refrigeration Units
• Air Conditioning Systems
• Process Control Systems
• Compressed Air Systems

Product Description

The 100 Series Transmitter is a self-sufficient and independently developed product, specifically engineered for air compressor refrigeration pressure applications. Its core sensor features a proprietary ceramic design that ensures high temperature and corrosion resistance, along with exceptional stability and reliability.

This compact transmitter excels in measuring both industrial liquids and gases, making it ideal for sectors such as hydraulic energy, railway transport, petrochemicals, mechanical control, and air compression systems.

Every step of our manufacturing process—from research and development to assembly, calibration, and quality inspection—strictly follows international quality production standards.

Specifications

Dimensions and Wiring Definitions

Wiring Definitions

Ordering Guide

Dongguan SongFast Electronic Technology Co., Ltd.

Overview

Dongguan SongFast Electronic Technology Co., Ltd. is a leading high-tech enterprise specializing in the research, development, manufacturing, and sales of ceramic pressure sensors. Our product portfolio includes:

• Ceramic Pressure Sensor Cores
• Ceramic Modules
• Pressure Transducers
• Pressure Transmitters

Applications

Our products are widely used in various industries, including:

• Automotive
• HVAC
• Oil and Gas Pipelines
• Process Control
• Water and Wastewater Treatment
• Water Pumps
• Air Compressors

Through our high-quality pressure sensing components, SongFast Technology significantly contributes to advancements in the automotive, Internet of Things (IoT), and artificial intelligence (AI) sectors. In 2022, we were recognized as a National High-tech Enterprise.

Facilities

Our state-of-the-art facilities include a 4,000-square-meter dust-free workshop equipped with fully automated production lines featuring:

• Automatic temperature compensation machines
• Laser trimming tools

This infrastructure enables an impressive production capability of over 20,000 ceramic elements daily, with an annual output exceeding 7 million units. Our products are renowned for their consistency, precision, and long-term reliability, thanks to our robust R&D capabilities and stringent manufacturing processes.

Certifications and Achievements

To date, SongFast Technology has been awarded over 25 patents and has successfully achieved:

• ISO 9001 Certification
• IATF 16949 Certification

Commitment to Innovation

SongFast Technology is dedicated to driving innovation and providing exceptional products and high-quality technical services to our global clientele. We strive to foster the rapid development of the sensor industry, working collaboratively to deliver innovative solutions.
